Garlic Grading Machine
Bulb-safe sizing for fresh and dry garlic.
Garlic Grading Machine specifications.
- Capacity
- 2–10 tons/hour
- Motor
- 7–15 HP, 3-phase, 440V
- Body Material
- Powder-coated mild steel
- Dimensions (L×W×H)
- 30 × 12 × 7 ft
- Weight
- 4–5 tons
- Warranty
- 1 year
- Size Grades
- 3 + 1 reject output
All specifications vary by configuration. Ranges shown span our smallest to largest build for this model. Tell us your requirement and we'll spec the exact machine.

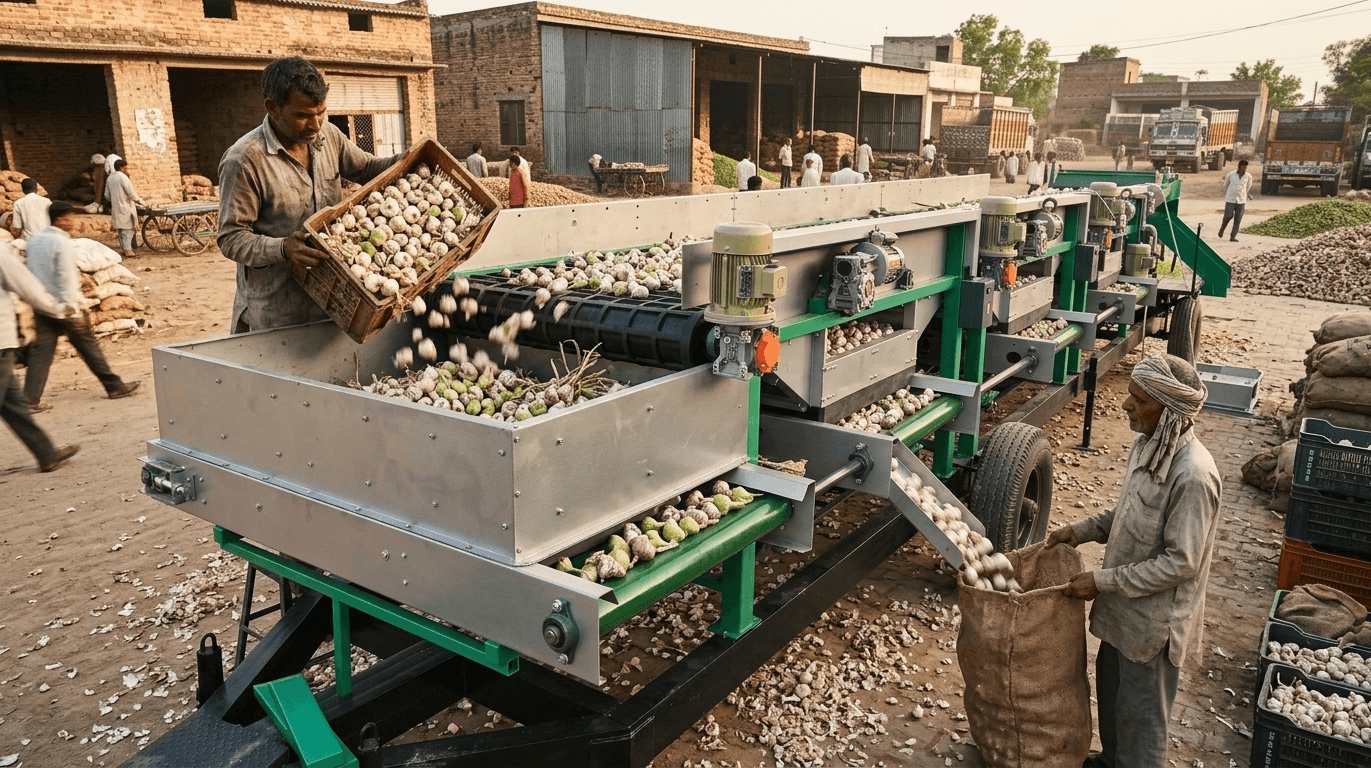

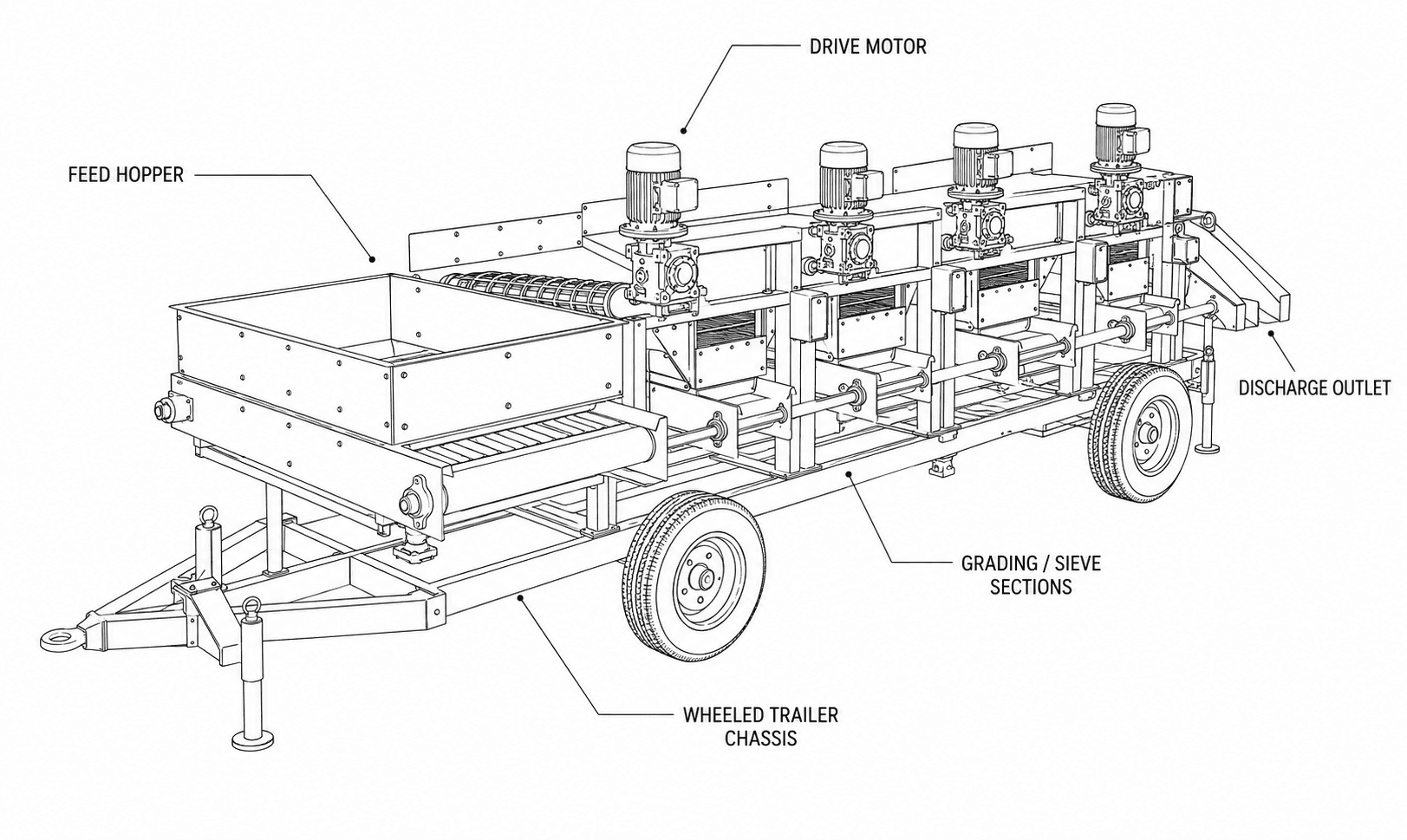

How the Garlic Grading Machine works
Garlic pricing tracks bulb size closely, and hand-grading a harvest bulb by bulb is one of the slower jobs in a packhouse. This line feeds bulbs through a grading section set to your target diameters, sorting fresh or dry garlic without the cracking that rough handling tends to cause.
Key features of the Garlic Grading Machine.
Garlic Grading Machine FAQs.
Does it work on both fresh and dry garlic?
Both. The grading section sorts by bulb diameter regardless of whether the garlic is fresh off the field or already dried.
Is bulb cracking a risk during grading?
The feed and grading motion is built specifically to avoid that. Cracked or split bulbs are what this design is meant to prevent.
How long does it take to train someone to run it?
Most new operators are comfortable running it within a day. The controls are kept deliberately simple.
How much space does the line need?
It's a long line, about 30 by 12 feet and 7 feet high, weighing 4 to 5 tons. It suits a dedicated shed rather than a corner of a packing room, and the floor needs to take the weight.
What happens to undersized or damaged bulbs?
They go to a separate reject output, so you get three size grades plus a reject stream. That keeps the graded lots clean without anyone hand-picking afterwards.
Get pricing and specs for the Garlic Grading Machine.
Tell us your crop, daily volume, and shed size and we'll recommend a configuration and quote, usually within one business day.
